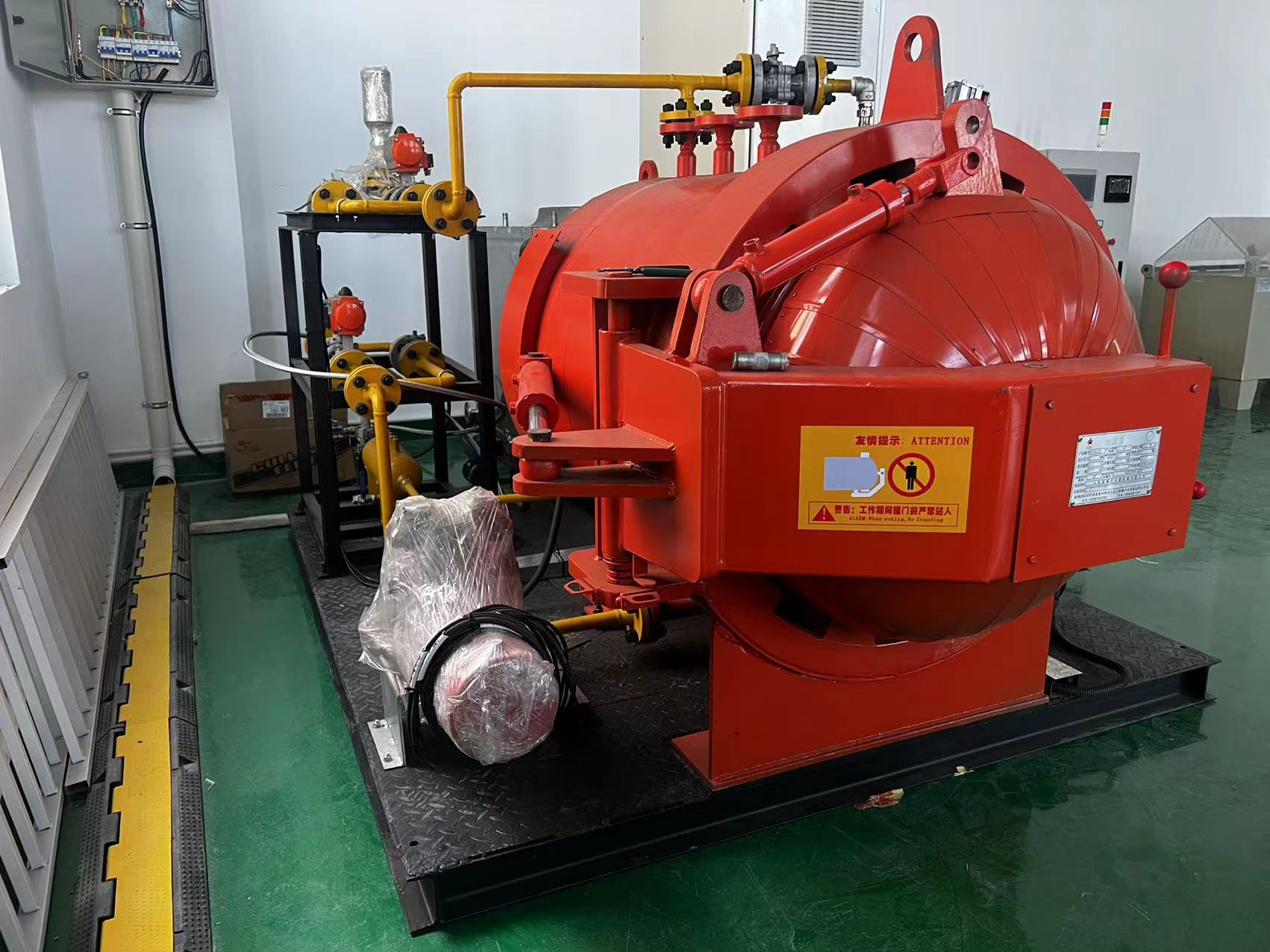

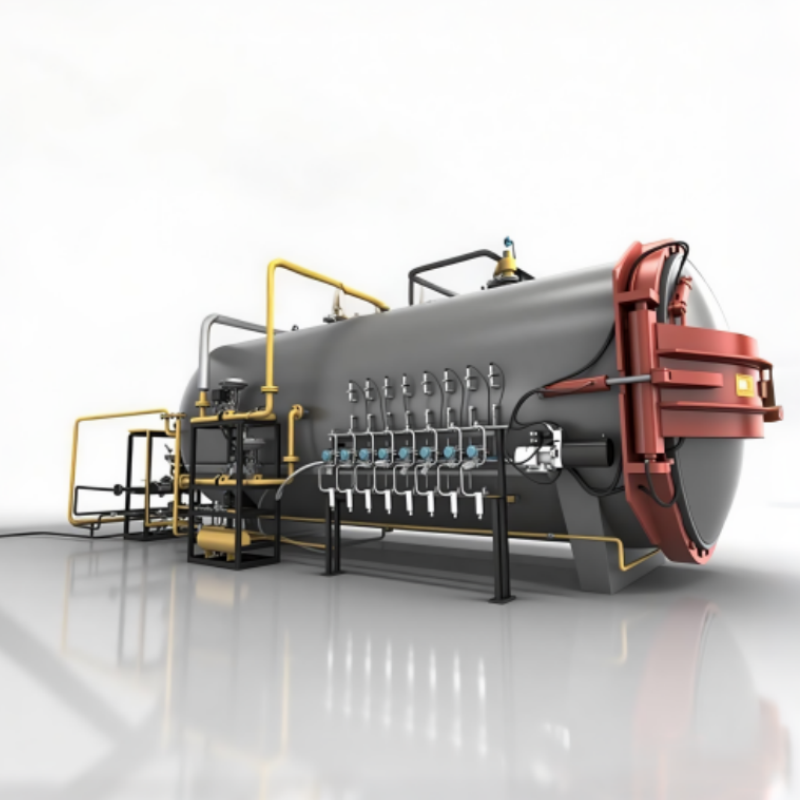

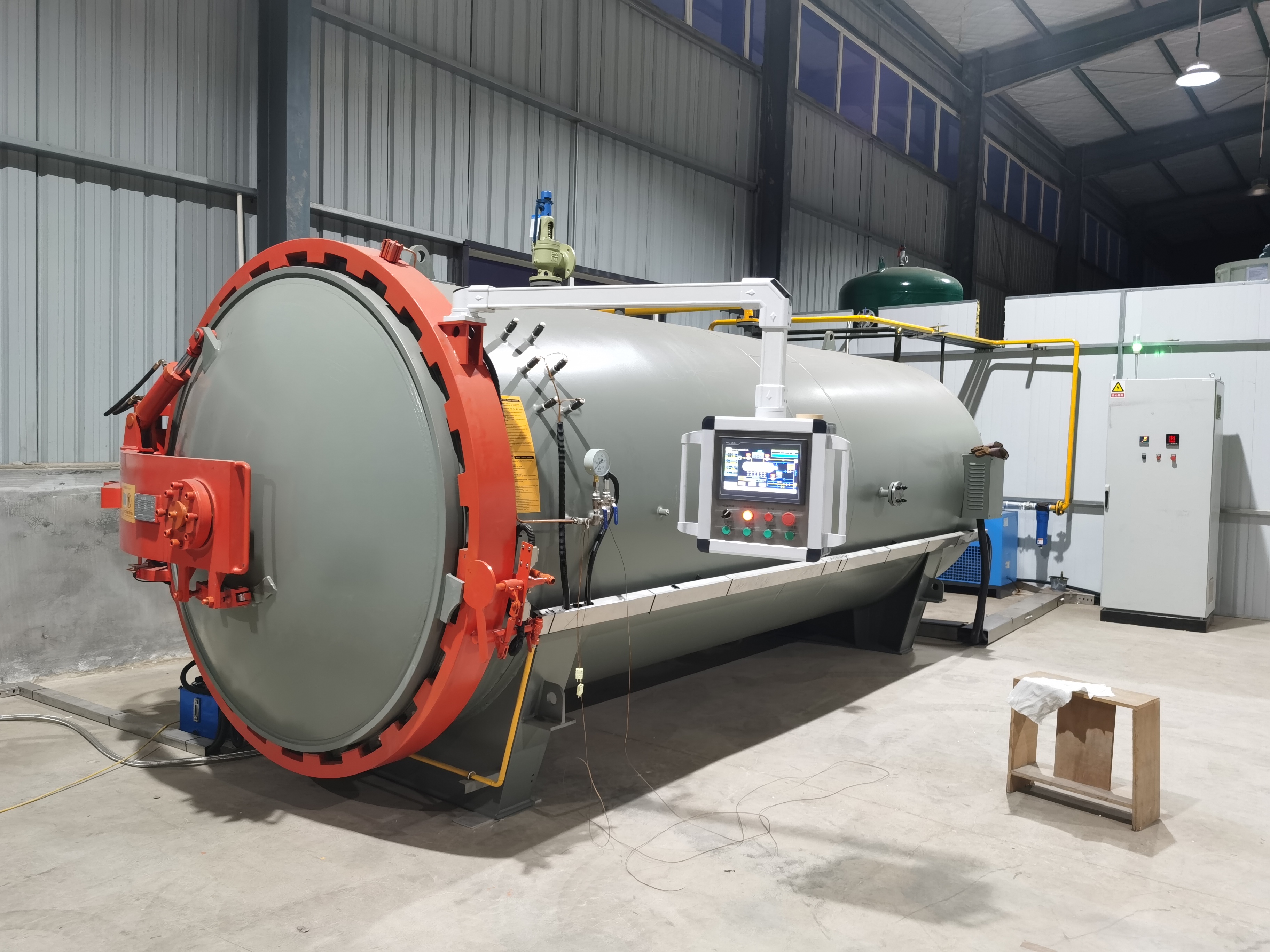

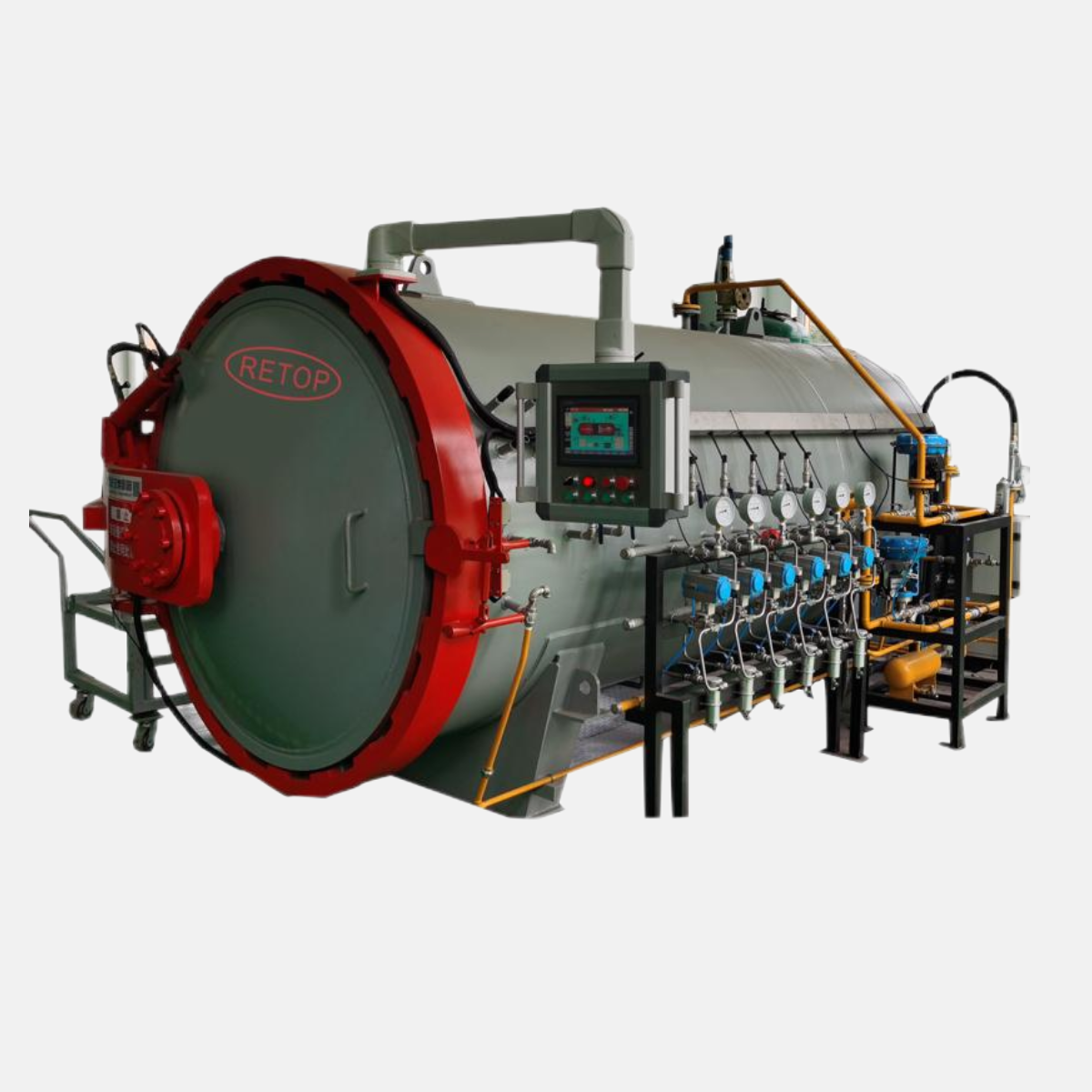

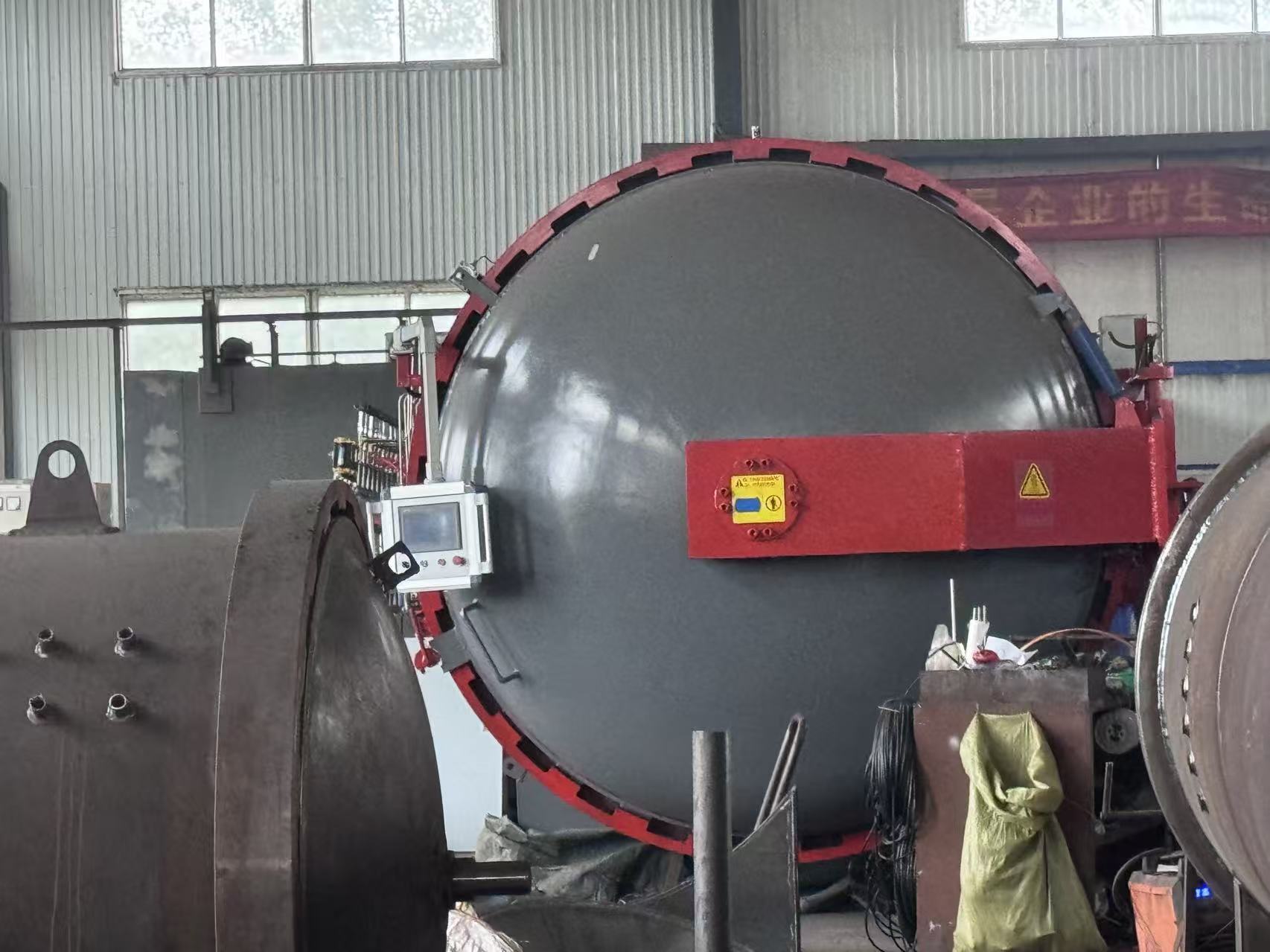

Autoclave Equipment
▌Technical Parameters
|
Item |
Parameters |
| Series |
RET-A |
| Effective/Useful Size |
Φ2-8m × 4-20m (Customizable) |
| Maximum Working Pressure | 1.2-5 MPa |
| Maximum Working Temperature | 220~500 °C |
| Heating Rate |
0.5-5 °C/min |
| Cooling Rate | 0.5-5 °C/min |
| Heating Method |
Electric Heating or Thermal Oil Heating |
| Cooling Method |
Water Cooling |
| Control System |
PLC + Touch Screen (With Data Logging Function) |
| Number of Thermocouples | 8-80 |
| Number of Vacuum Circuits | 4-40 |
| Total Power |
80-5000 kW |
| Pressurization Rate |
0-0.1 MPa/min, Adjustable |
| Depressurization Rate |
0-0.1 MPa/min, Adjustable |
▌Core Features
Uniform Curing at High Pressure & Temperature: Delivers a stable pressure and temperature environment, ensuring full curing of composite materials and excellent performance.
Large-Size Processing Capacity: Accommodates large-scale components, catering to the requirements of fields like aerospace and wind power.
Automatic Control: Features an intelligent temperature and pressure regulation system, enabling easy operation and excellent process repeatability.
Safety & Reliability: Equipped with multiple safety protection devices, ensuring stable equipment operation.
Energy-Saving & High-Efficiency: Adopts an optimized thermal cycle design, reducing energy consumption and enhancing production efficiency.
Wide Applicability: Accommodates the curing and forming of various materials, including resin matrix composites and bonded structures.
