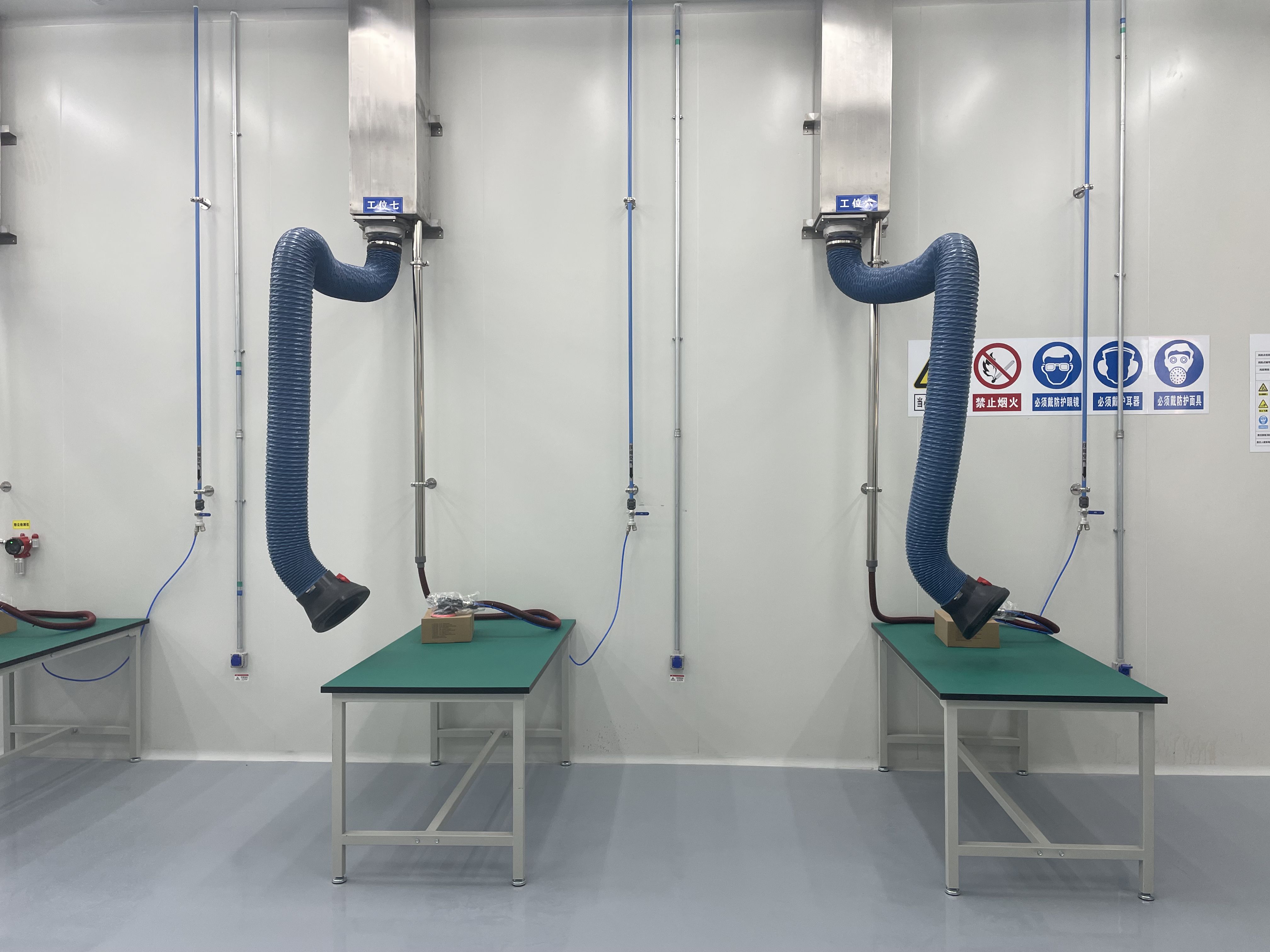

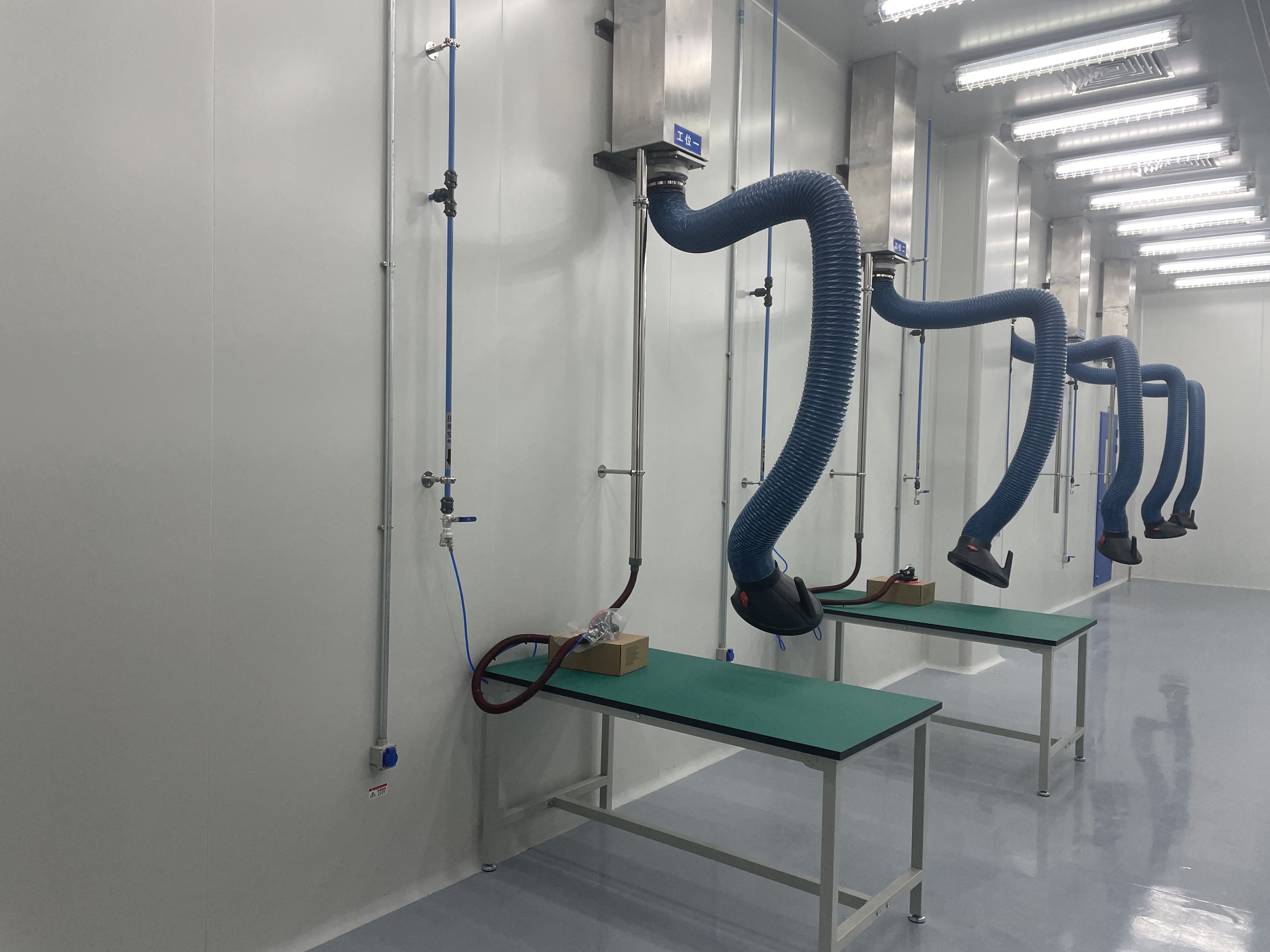

Grinding Table
This dedicated workbench is designed for grinding, polishing, and deburring workpieces’ surfaces. Equipped with a high-efficiency dust collection system, it ensures a clean and safe grinding process while integrating the functions of a workbench and environmental purification. It meets the high-standard surface treatment requirements of industries such as automotive components, the aerospace sector, and furniture manufacturing.
▌Technical Parameters
|
Item |
Parameters |
| Equipment Main Body | 800×1200×1600 mm - 3000×1200×1600 mm |
|
Table Height |
750 mm |
|
Table Width |
800 mm - 3000 mm |
|
Table Depth |
700 mm |
| Table Thickness | Carbon Steel 2.0 mm |
| Filter Cartridge Area | 20-40 m² |
| Filtration Accuracy | 0.3-0.5 μm |
| Filtration Efficiency | 1 |
| Fan Airflow | 3000-3600 m³/h - 8000-9000 m³/h |
| Voltage | 380 V / 50 Hz |
| Table Load Capacity | 150 kg - 300 kg |
| Compressed Air | 0.4-0.6 MPa |
|
|
▌Performance Characteristics
Integrates a dust extraction function to reduce dust pollution.
Features anti-static design for safety and reliability.
Boasts a spacious operating space, suitable for various workpieces.
Has a stable structure to achieve shock absorption and noise reduction.
