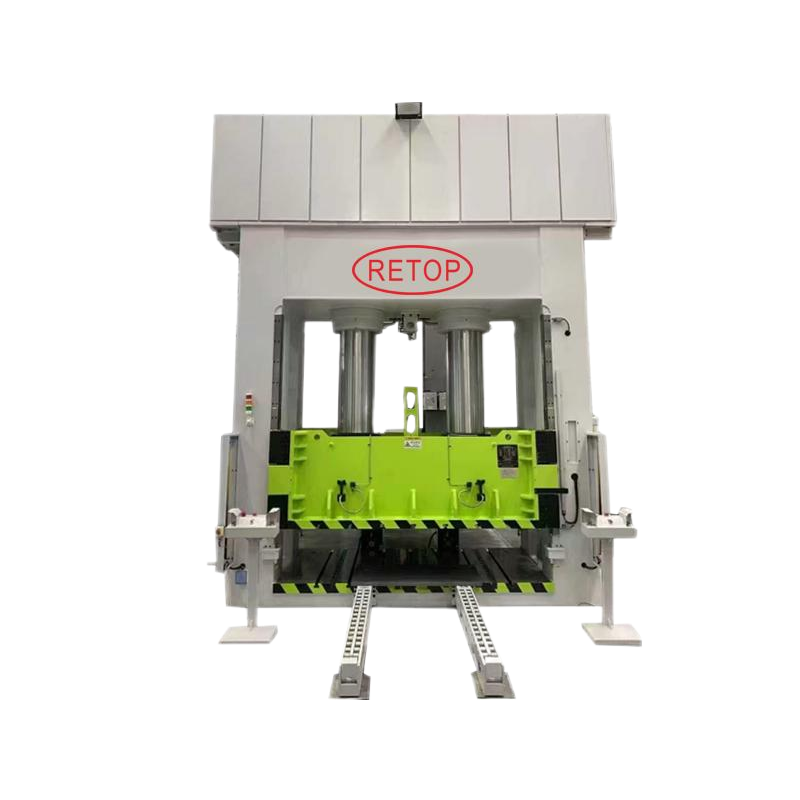

600-ton Molding Press
The molding press is a specialized equipment that realizes compression molding of metals, plastics, composite materials and other materials in the mold by applying controllable pressure and coordinating temperature regulation. It boasts precisely adjustable pressure and high molding efficiency, and is widely used in the production and manufacturing of automotive parts, aerospace components, electronic component packaging, rubber products and other fields.
▌Technical Parameters
|
Item |
Parameters |
| Maximum Liquid Pressure | 25 MPa |
| Ram Stroke | 400 mm – 900 mm |
| Work Table Size | 520 × 520 mm – 2000 × 2000 mm |
| Approaching (Fast Down) Speed | ≤ 200 mm/s |
| Working Speed | 15 – 26 mm/s |
| Return Speed | ≤ 160 mm/s |
| Motor Power | ≤ 44 kW |
| Ejection Force | ≤ 250 T |
| Ejection Stroke | ≤ 450 mm |
▌Performance Characteristics
High-Pressure Molding with Stability and Reliability
Intelligent Control System
Comprehensive Safety Protection
Easy Operation and Maintenance
