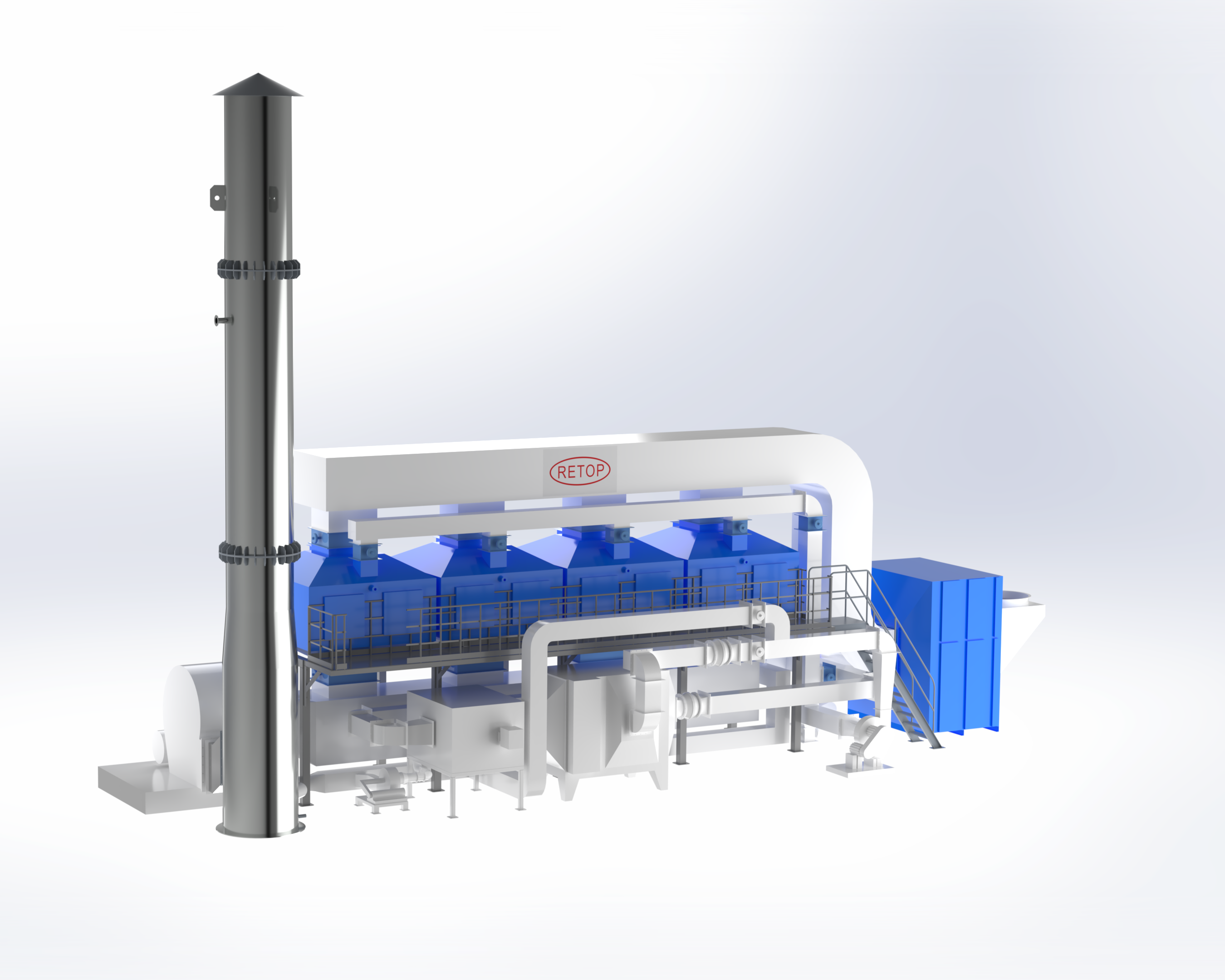

Catalytic Combustion Equipment
Catalytic combustion device: a device burning organic waste gas with a catalyst. Its principle: with a catalyst, organic waste gas undergoes flameless combustion at lower ignition temperature, decomposing into non-toxic CO₂ and water vapor. It meets strict eco-friendly emission standards for industries like spraying, printing, chemical engineering and electronics.
▌Technical Parameters
|
Item |
Parameters |
|
Processing Air Volume |
1000-50000m³/h |
| Activated Carbon Loading Capacity | 0.5-20m³ (matched to air volume) |
| Catalytic Combustion Temperature |
250-400℃ |
| Inlet VOCs Concentration | ≤800mg/m³ (pretreatment required if exceeded) |
| Purified VOCs Concentration |
≤50mg/m³ (complies with GB16297 standard) |
| Equipment Operating Noise | ≤85dB(A) |
| Installed Power | 10-200kW (matched to air volume) |
| Equipment Overall Dimensions (L×W×H) | 2m×1.5m×2.5m - 10m×4m×5m |
▌Performance Characteristics
High-Efficiency Purification: VOCs removal rate ≥ 95%
Energy Saving & Consumption Reduction: Low-temperature catalysis (200-400℃) with low energy consumption
Safety & Stability: Explosion-proof design and automatic control
Long-Life Catalyst: Service life ≥ 3 years
