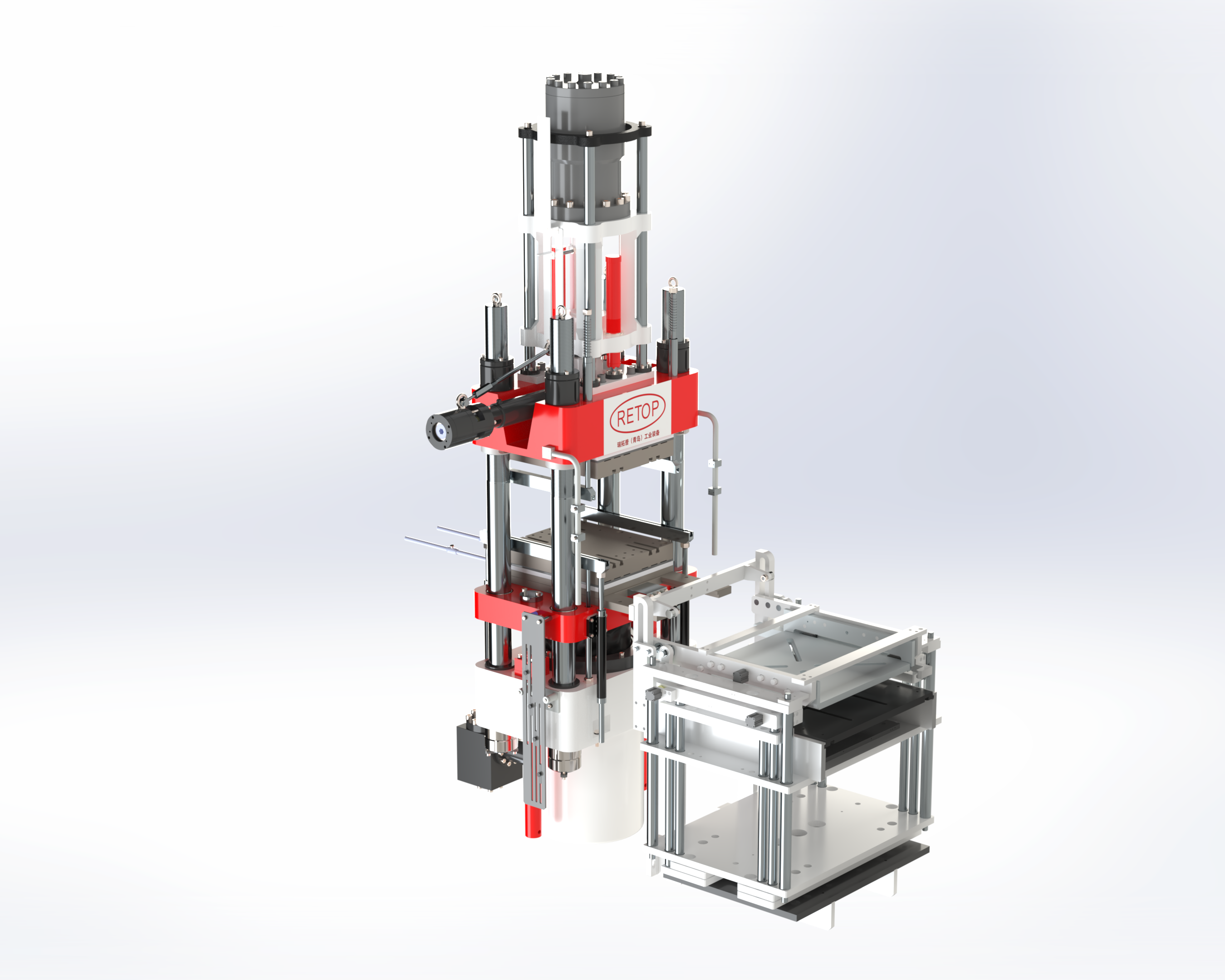

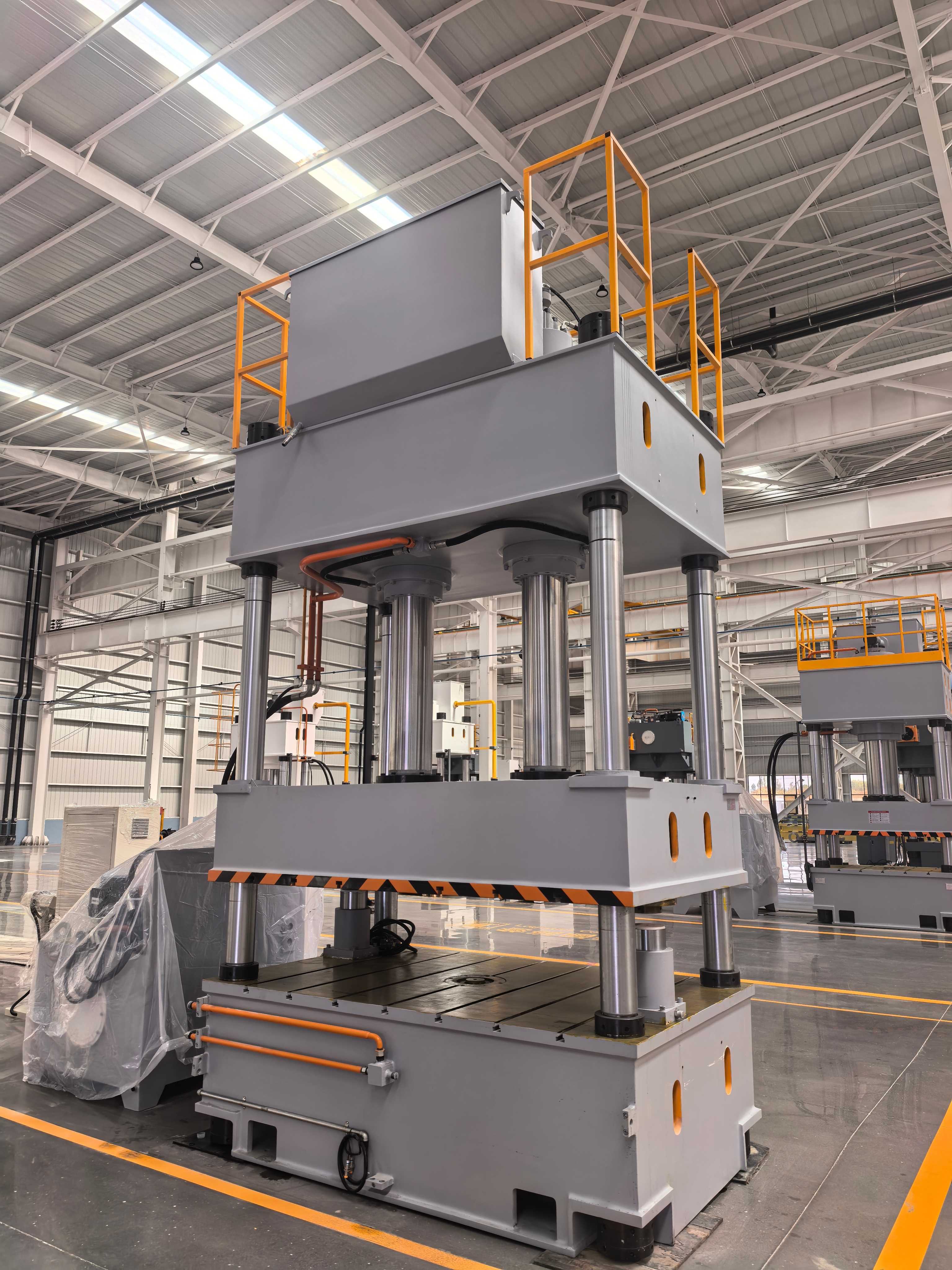

200-ton Molding Press
The molding press is a specialized equipment that achieves compression molding of metals, plastics, composite materials, etc. in the mold by applying controllable pressure combined with temperature regulation. It features precisely adjustable pressure and high molding efficiency, and is widely used in the production and manufacturing of automotive parts, aerospace components, electronic component packaging, rubber products and other fields.
▌Technical Parameters
|
Item |
Parameters |
| Maximum Liquid Pressure | 25 MPa |
| Ram Stroke | 400 mm – 900 mm |
| Work Table Size | 520 × 520 mm – 2000 × 2000 mm |
| Approaching (Fast Down) Speed | ≤ 200 mm/s |
| Working Speed | 15 – 26 mm/s |
| Return Speed | ≤ 160 mm/s |
| Motor Power | ≤ 44 kW |
| Ejection Force | ≤ 250 T |
| Ejection Stroke | ≤ 450 mm |
▌Performance Characteristics
Stable and reliable high-pressure molding;
Intelligent control system;
Comprehensive safety protection;
Simple and convenient operation & maintenance.
