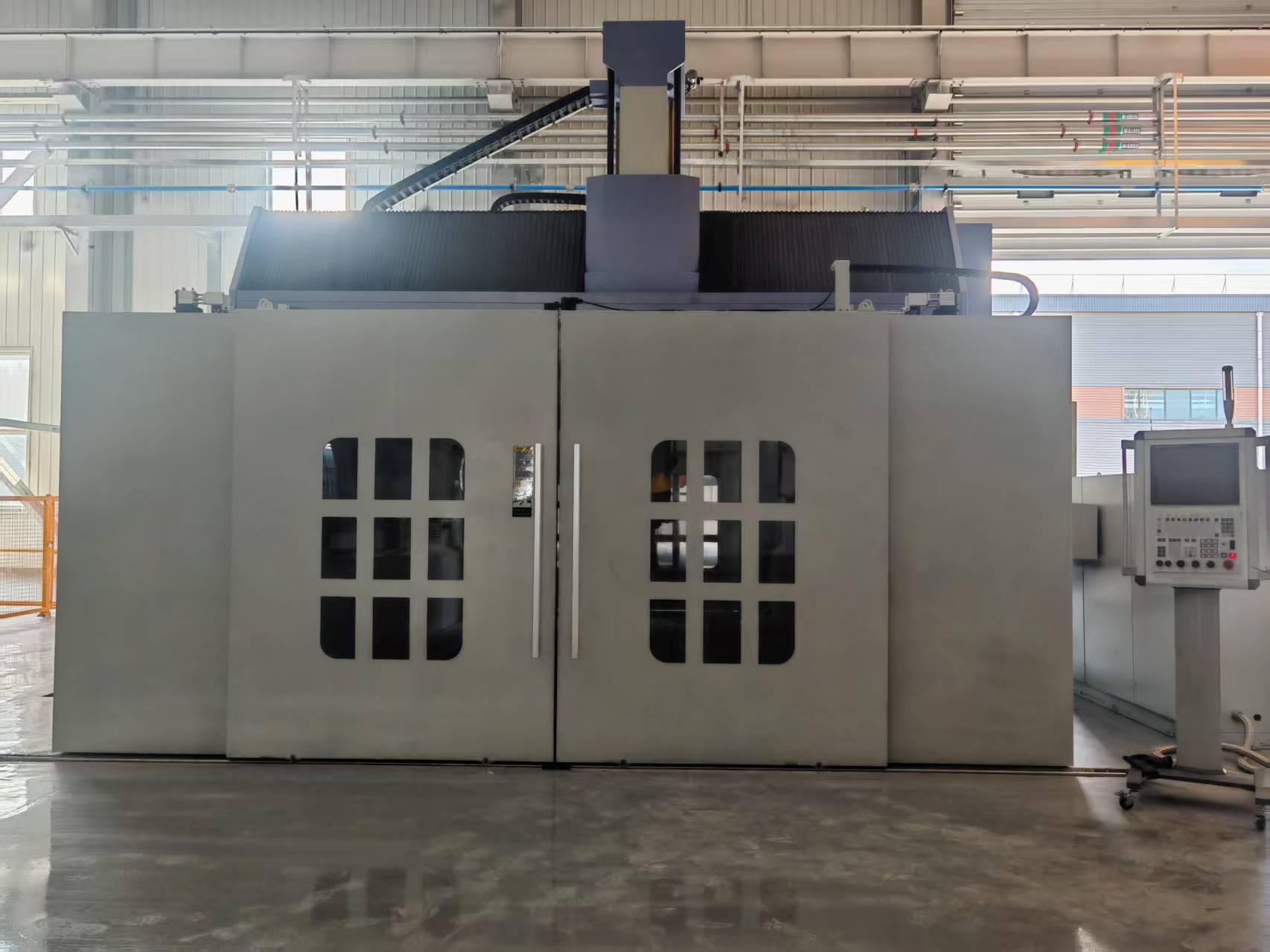

Five-axis Composite Material Machining Center
▌Technical Parameters
|
Item |
Parameters |
| X-axis (mm) |
3000-7000 |
| Y-axis (mm) |
1500-6000 |
|
Z-axis (mm) |
800-1500/1800 |
| Spindle Power (KW) | 5.5-11 |
| Tool Holder Standard | BT40/BT50 |
| Rapid Traverse Speed | 40m/min |
| Cutting Speed | 20m/min |
| Transmission Mode | XYZ Three-axis Ball Screw Transmission |
| Machining Speed | 1-20000 mm/min |
| Tool Magazine | Optional |
▌Performance Characteristics
Five-axis Simultaneity: All-dimensional flexible machining, adapting to complex configuration requirements;
Composite Material Adaptation: Optimized for the characteristics of composite materials, reducing processing damage;
High-precision Positioning: Micron-level positioning accuracy, ensuring processing consistency;
Efficient Cutting: Optimized cutting path, improving machining efficiency;
Stable and Reliable: High-rigidity frame design, suitable for long-time continuous machining.
▌Applicable Materials
Carbon Fiber Composites, Glass Fiber Composites, Aramid Composites, Hybrid Composites, Honeycomb Composites, etc.
▌Application Fields
Widely used in aerospace, rail transit, automotive industry, wind power equipment, high-end equipment manufacturing and other fields.
